London's expansion from Roman Londinium to today's dense urban fabric has built over a complex sequence of River Terrace gravels, London Clay, and alluvial deposits along the Thames. These varied strata create very different subgrade conditions within a single street. Before we design any pavement section, we run a CBR study for road design to measure the soaked California Bearing Ratio of the subgrade. This value directly dictates the required pavement thickness. In areas like the Lambeth Group clays, natural CBR can fall below 2 percent. Without this test, you risk either a pavement that cracks within two winters or a foundation that is unnecessarily thick and expensive. We complement this analysis with a granulometry test to understand particle distribution and a subgrade compaction assessment to verify the in-situ density before placing the base course.
In London Clay, soaked CBR can drop below 2 percent, turning a standard road section into a structurally inadequate pavement within a year.
Scope of work
Area-specific notes
A common mistake we see in London is designing pavement thickness based on assumed CBR values from nearby projects. That shortcut ignores the variability of the Lambeth Group and the Kempton Park Gravels. We once reviewed a failed industrial estate road in Barking where the contractor assumed a CBR of 5 percent. The actual soaked value was 1.2 percent. Within eight months, the asphalt showed longitudinal cracking and edge subsidence. The repair cost exceeded the original pavement budget. A CBR study for road design is not a regulatory luxury. It is the cheapest insurance against premature failure. Do not let a speculative number define your structural layer thickness.
Standards used
BS 1377-4 (1990), BS 5930 (2015), Eurocode 7 (EN 1997-1:2004), Highways Agency Design Manual for Roads and Bridges (DMRB) LA 113
Linked services
Laboratory Soaked CBR Test

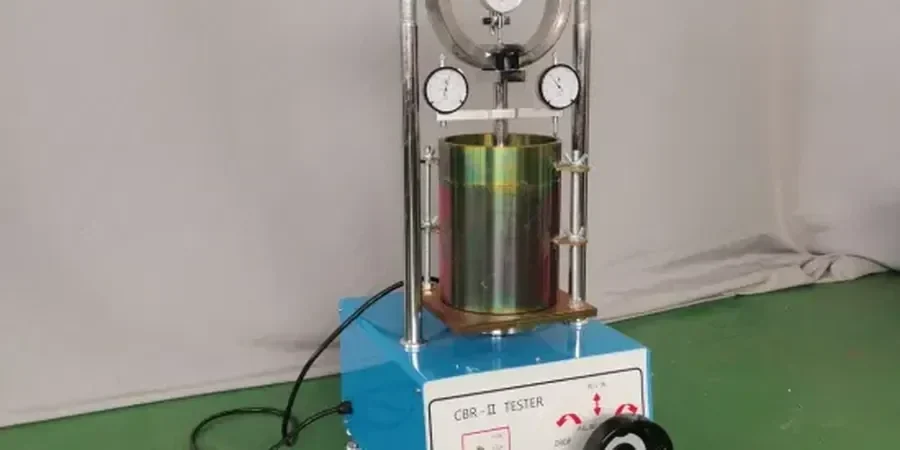

We compact samples at the required Proctor density, soak them for 96 hours, and measure the load-penetration curve per BS 1377-4. We report CBR at 2.5 mm and 5.0 mm penetration, expansion during soaking, and the moisture content before and after the test. This is the standard input for flexible pavement design in London.
In-Situ CBR (Field) Assessment
For existing road formations or compacted subgrades, we perform in-situ CBR using a dynamic cone penetrometer (DCP) or a calibrated falling weight deflectometer (FWD). We correlate the DCP penetration rate to CBR using the TRL equation. This method is faster than lab testing and ideal for rehabilitation projects where undisturbed samples are difficult to obtain.
Typical parameters
Q&A
How much does a CBR study for road design cost in London?
Our laboratory soaked CBR test, including sample preparation and full reporting, costs between £110 and £240 per sample. The exact price depends on the number of samples, the compaction effort required, and whether you need same-day or standard turnaround. We always quote a fixed price before starting any work.
What is the difference between soaked and unsoaked CBR?
Soaked CBR simulates the worst-case moisture condition after prolonged rainfall. The sample is immersed in water for 96 hours before testing. Unsoaked CBR tests the material at its natural moisture content. For road design in London, we always recommend soaked CBR because the high clay content can absorb water and lose strength significantly.
How long does a CBR test take from sampling to final report?
The full cycle takes about seven working days. The soaking period alone is four days. We then need one day for penetration testing and another day for drying, weighing, and report writing. For urgent projects, we can offer a reduced soaking period of 48 hours with a note on the report, but that is not standard for design verification.
Do you provide CBR testing for highway schemes that need DMRB compliance?
Yes, we perform CBR testing that complies with the Design Manual for Roads and Bridges (DMRB) LA 113 and the Specification for Highway Works (SHW). We document the compaction method, soaking conditions, and penetration rate exactly as required by the Highways England framework. We also supply chain of custody documentation for UKAS-accredited schemes.
